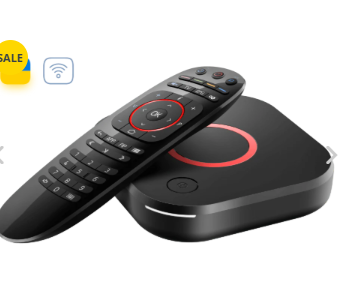

UHD set-top box with 4K support
MAG424w3 is an improved version of the base model MAG424 with a built-in Wi-Fi module of 802.11a/b/g/n/ac standard. Wi-Fi works feature is dual-band so that support both 2.4 GHz and 5 GHz channels.
Equipped with 2 USB, Bluetooth 4.1 and built-in Wi-Fi adapter.
UHD set-top box with 4K support
MAG424w3 is a cost-effective UHD OTT solution intended for medium to large sized operators and telecommunication service providers. The set-top box performed in small form-factor. It has 1 GB operative and 8 GB flash memory, which is good enough to playback and store the high-quality video.
MAG424w3 plays the HEVC-compressed files. It means the network load will be lower, even when delivering 4K content. The device runs on Linux OS and fully meets the most stringent requirements of the OTT market.
Equipped with 2 USB, Bluetooth 4.1 and built-in Wi-Fi adapter (MAG424w3).
MAG 424W3 4K WIFI SET TOP BOX
Dimensions Width/Depth/Height (mm) 115x115x28 Weight, g 180 Hardware Chipset Hi3798MV200 Processor ARM Cortex A53 Quad Core CPU 1200 MHz Perfomance 15000 DMIPS RAM 1 GB Flash memory 8Gb eMMC Software Operating system Linux 4.4.35 Middleware supported Ministra multiscreen TV platform Interfaces HDMI 2.0, S/PDIF, Ethernet 100 Mbps, USB 2.0х1, USB 3.0x1, Bluetooth 3.0, 4.1, Wi-Fi 2T2R ac Sources of Media Content PC and NAS in local network, Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP), USB-devices Audio & Video Audio сodecs MPEG-1 I/II, MPEG-2 II, III (mp3), Dolby Digital Plus, AAC-LC, HE-AAC v1, HE-AAC v2 Audio formats MP3, MPA, M4A, OGG, WAV, AAC Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p Video сodecs H.265 (HEVC), H.264 (AVC, MVC), MPEG-1/2, MPEG-4 Video containers TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP Image formats JPEG, PNG, BMP, GIF, RAW Subtitles DVB, PGS, Hardsub, Inserted, SRT, SSA/ASS, SUB, Teletext subs, WebVtt, Closed Caption Playlist formats M3U, M3U8, PLS, CUE Standard Set MAG424w3 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging
